Santak A12-730W UPS Battery 12V730W Gel Battery

Product details

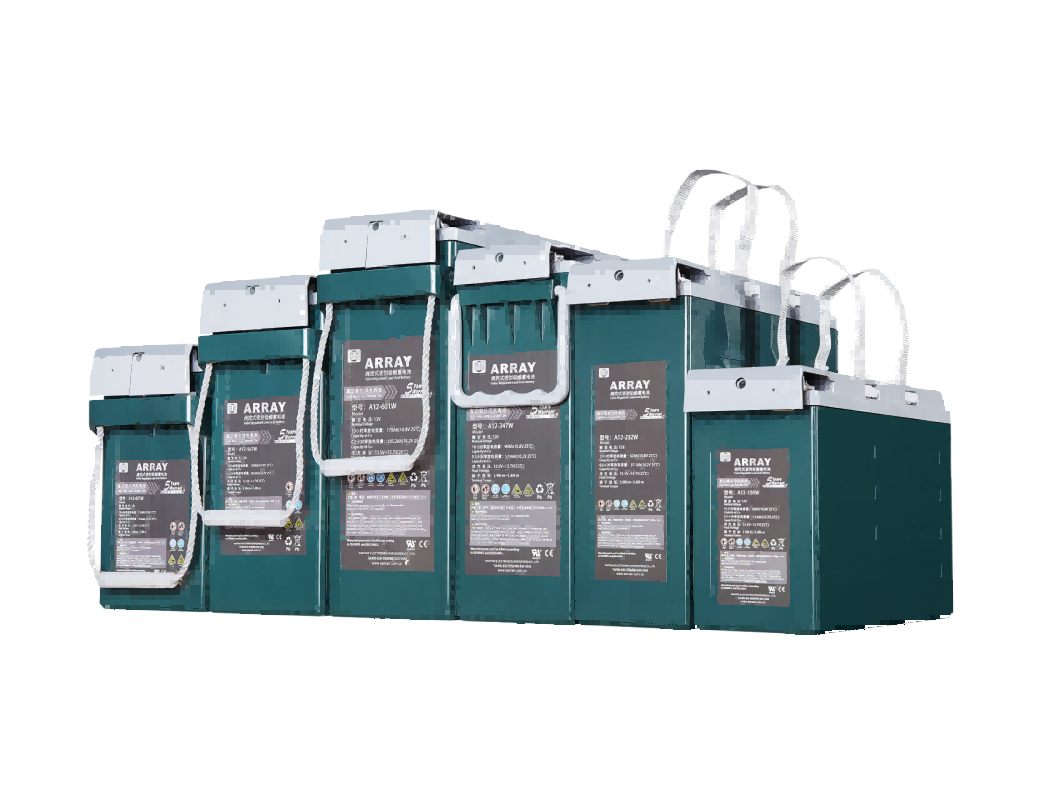

The Santak ARRAY series A12-730W lead-acid battery has redefined the energy storage standard for UPS power supplies. This 12V battery with a high-power output of 730W @ 15 minutes adopts the revolutionary thin plate pure lead technology, which increases the reaction contact area of the plates by 30%. It enables a high-power discharge response within 5 seconds in case of a sudden power outage in the data center and also supports a 0.3C fast charging recovery. Inside its compact structure with dimensions of 559 * 125 * 328mm, 60.5kg of high-density lead paste is encapsulated. Paired with M6 terminals, it ensures the stability of high-current transmission. The measured ultra-low internal resistance of 2.9mΩ effectively reduces energy loss. In a constant temperature computer room environment of 40℃, the ARRAY battery can still maintain a floating charge life of 18 years, far exceeding the 5 - 7-year cycle of traditional AGM batteries. Through the ABS + PC alloy shell and the high-density design of the grid, it not only passes the 94-V0 fireproof certification but also can withstand the vibration and corrosion tests in scenarios such as the petroleum and chemical industries and rail transit. The actual application data in the core computer room of banks shows that after three consecutive years of operation, the capacity attenuation rate of this battery pack is less than 5%. It supports the intelligent monitoring system to upload charging and discharging data to the Santak cloud platform in real time, providing a traceable power supply guarantee solution for key industries such as finance and healthcare. From the C10 deep cycle at the 200Ah level to the millisecond-level response during a sudden power outage, the A12-730W perfectly matches the Santak Castle series 1 - 20kVA UPS systems. In the intelligent manufacturing production line, its front terminal design improves the maintenance efficiency by 40%. In remote communication base stations, its two-year storage period and wide temperature range characteristics from -20℃ to 60℃ significantly reduce the operation and maintenance costs. This battery, which combines a 20-year floating charge life commitment and industrial-grade protection standards, is building the ultimate defense line for uninterruptible power supplies for more than 3,000 enterprises worldwide.

Product Features

Ultra-thin pure lead plate technology enhances reaction efficiency, supporting 10-minute rapid charge/discharge
20-year ultra-long float service life at room temperature, with high-temperature adaptability up to 80°C
ABS+PC alloy shell passes 94-V0 fire certification, leading industry safety standards
Front-terminal design enables tool-free installation, improving maintenance efficiency by 50%
Automated production ensures plate consistency, delivering greater stability in multi-cell series applications
Self-discharge rate below 0.1%/day, with up to 24-month storage life when unused
Compatible with Santak Castle series UPS, featuring built-in smart monitoring for cloud management platforms

Application Scenarios

UPS power backup systems for financial industry core server rooms
Uninterrupted power supply for 5G communication base stations and edge computing nodes
Power supply protection for industrial automation production line control equipment
Power support for rail transit signaling systems and emergency lighting
Power solutions for precision medical equipment like CT scanners and MRI in tertiary hospitals
Secure power solutions for petrochemical DCS control systems
Reliable power foundation for continuous operation of industrial robots in smart factories
