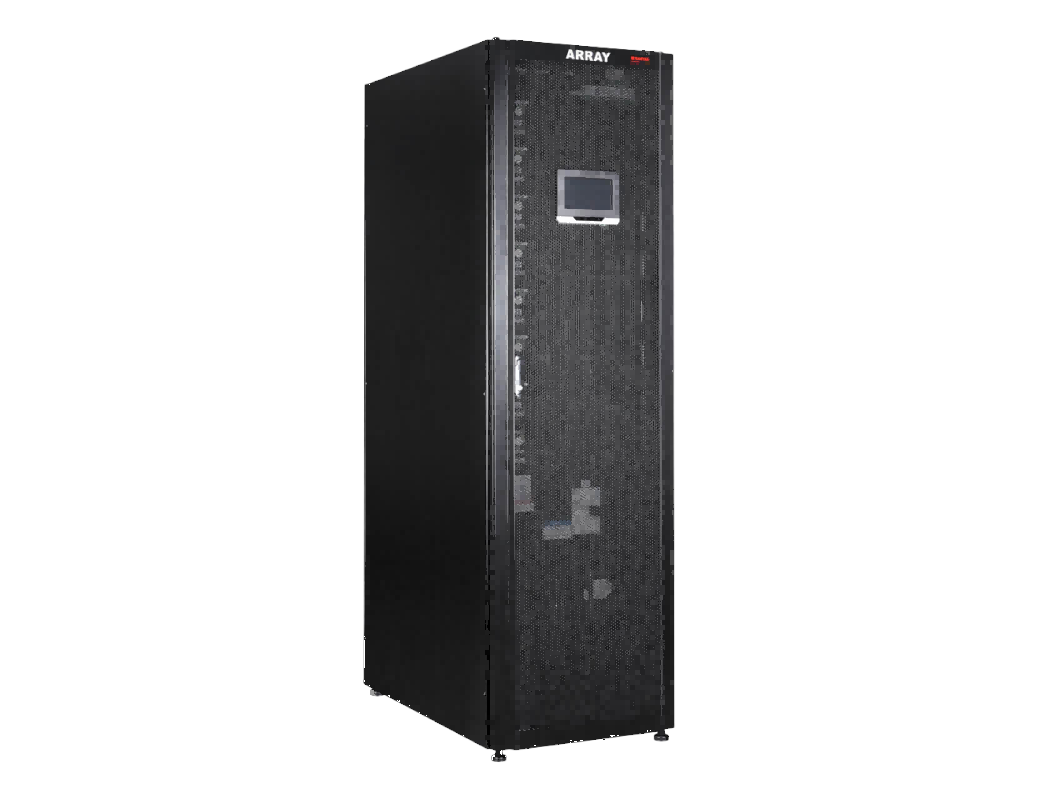

Santak ARRAY 3A3 PT Three-Phase Online Double-Conversion Modular UPS Power Supply 25-200kVA, 1.0pf

Product details

The Santak ARRAY 3A3 PT series uninterruptible power supply, with its three-phase input/output modular architecture as the core, provides highly reliable power protection for 25-200kVA demand scenarios. The product utilizes silicon carbide hybrid IGBT modules and oil-immersed long-life capacitors, achieving 97% ultra-high efficiency in double conversion mode. When paired with the ESS intelligent energy-saving system, operational efficiency can be further increased to 99%, significantly reducing data center PUE values. Its modular design supports hot-swapping of up to 10 60kW power modules, and with multi-directional ventilation solutions (front/top), it can flexibly adapt to wall-mounted deployments or hot/cold aisle layouts, saving up to 50% of server room space.For demanding environments such as medical centers and financial data centers, the ARRAY 3A3 PT features built-in fully isolated input/output protection, supports flexible configuration of 36-42 battery cells, and extends battery life by 30% when combined with ABM intelligent charging technology. The product is equipped with a 7-inch color touchscreen and three communication slots, enabling remote monitoring via SNMP/Modbus protocols. With WinPower software, it can track load status and energy efficiency data in real time. Its unique fast fuse protection mechanism ensures fault switching within 5ms, delivering pure sine wave output with THD <2%, perfectly compatible with precision medical equipment.In terms of scalability, the series supports horizontal parallel connection of up to 8 units for a total power of 4.8MW, with vertical expansion modules allowing on-demand capacity increases. The compact cabinet (600mm wide x 2020mm high) features dual cable entry points at the bottom/top, compatible with 380V±15% wide voltage input. Combined with an operating temperature range of -25°C to 60°C, it ensures stable output even in high-altitude or high-temperature environments. Certified by TÜV and CQC Energy Efficiency, it provides a one-stop power solution for new infrastructure scenarios like smart cities and rail transit.

Product Features

Three-level technology achieves double conversion efficiency over 97%, ESS mode efficiency reaches 99%
Modular hot-swappable design supports vertical 10-module stacking and horizontal 8-unit parallel operation
Silicon carbide hybrid IGBT and oil-immersed capacitors enhance impact resistance and component lifespan
Front intake + top/rear dual exhaust design adapts to various data center layouts
7-inch smart touchscreen with SNMP/Modbus remote monitoring capabilities
Compatible with lithium battery systems and supports flexible 36-42 cell configurations
Certified by TÜV, CQC Energy Efficiency, and EU RoHS environmental standards

Application Scenarios

Data centers: Delivers efficient and clean power for server clusters, supporting modular elastic expansion
Medical centers: Ensures uninterrupted power supply for critical areas like operating rooms and ICUs
Financial systems: Guarantees zero power fluctuation for core banking transactions and data centers
Rail transit: Provides anti-interference stable power for signal control systems
Broadcasting systems: Maintains continuous power supply for live equipment and transmission networks
Education & research: Protects precision lab instruments from grid fluctuations
Power dispatch: Supports 24/7 stable operation of SCADA systems

Product Parameters

Model:ARRAY 3A3 PT
UPS Output Capacity:25-200 kVA,? 1.0 pf
Online Double Conversion Efficiency:>96%
ECO Mode Efficiency:>99%
Inverter / Rectifier Topology:Three-level, high-frequency PWM IGBT modulation
Parallel Capability:Up to 4 units horizontal expansion
Noise:Default (Online Double Conversion) < 65dBA
UPS Topology:Online Double Conversion
UPS Dimensions (W×D×H):600mm x 1100mm? x 2020mm (75kVA frame)
UPS Dimensions (W×D×H):608mm x 1010mm? x 2050mm (200kVA frame)
UPS Protection Level:IP20
Altitude:No derating required within 1000 meters
Input Power Distribution:3ph + N + PE
Input Rated Voltage (Configurable):220/380, 230/400, 240/415 V
Input Rated Frequency:50 or 60 Hz, user selectable
Input Frequency Acceptance Range:40 to 72? Hz
Input Power Factor:0.99
Input Current THD:<3%
Soft Start Capability:Supported
Battery Type:VRLA, AGM, Gel batteries
Charging Method:ABM? technology or continuous floating charge
Battery Temperature Compensation:Optional
Battery Rated Voltage (VRLA):36-42 battery cells optional, default 40 cells
Battery Cold Start Capability:Supported
Output Wiring:3ph + N + PE
Output Rated Voltage:220/380, 230/400, 240/415 50/60? Hz
Output UTHD:<1.5% (100% linear load)
Output UTHD:<3% (non-linear load)
Output Allowable Load Power Factor:0.8 leading ~ 0.8 lagging
Output Inverter Overload (Mains Mode):10 minutes 125%
Output Inverter Overload (Mains Mode):60 seconds 150%
Output Inverter Overload (Mains Mode):300 milliseconds > 150%
Output Inverter Overload (Battery Mode):10 minutes 125%
Output Inverter Overload (Battery Mode):60? seconds 150%
Output Inverter Overload (Battery Mode):300 milliseconds > 125%
Output Bypass Overload:< 115% continuous operation, 10ms 1000% (Note: Bypass fuse may limit overload capacity!)
Accessories:Smart Card (SNMP Card, Modbus Card, Dry Contact Card), Parallel Cabinet, Santak Battery Cabinet
Communication Slot:3? Smart Card Slots, Optional SNMP? Card, Modbus Card, Dry Contact Card
Communication Interface:Built-in Host and Device USB
Relay Input Interface:5 Programmable Inputs and Emergency Shutdown Interface
Software:Santak Winpower
Certification Safety:IEC 62040-1
Certification EMC:IEC 62040-2
Certification Product Performance:IEC 62040-3
Certification RoHS:EU Directive 2011/65/EU
Certification Others:TYT Certification YD/T2165-2010
Certification Others:CQC Energy Saving Certification CQC3108-2011
