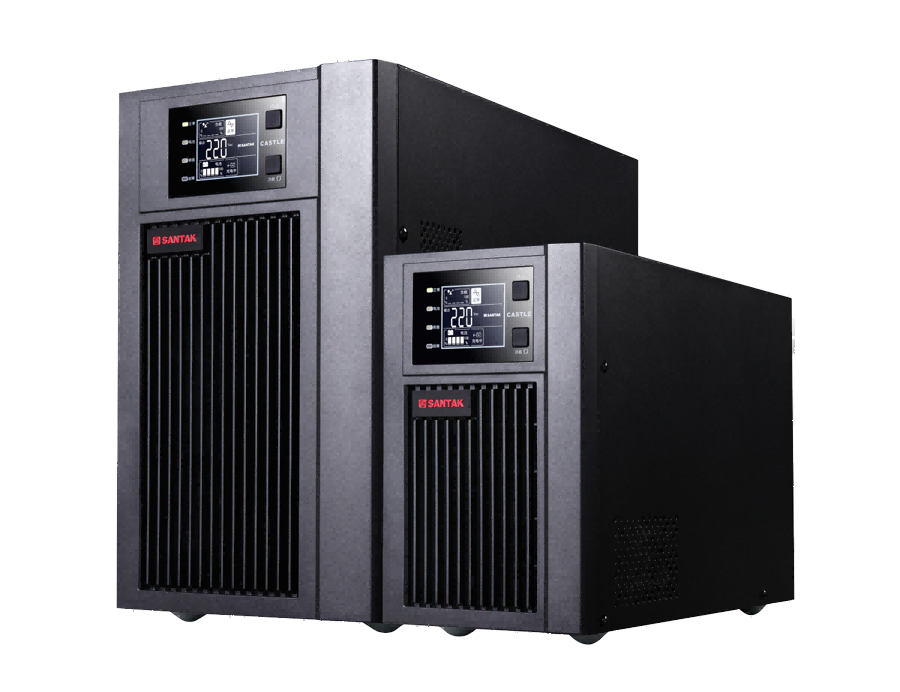

Santak UPS Power Supply 2000VA/1600W* Santak C2K Standby UPS Power Supply
The Santak UPS C2K uninterruptible power supply is specifically designed for small and medium-sized servers, workstations, and critical equipment, delivering stable power support of 2000VA/1600W. As a flagship product in the Castle Series, it employs double-conversion online technology to precisely address nine major power issues including outages, voltage fluctuations, and surges. With an ultra-wide input voltage range of 115-300VAC, it adapts to complex environments such as high altitudes, remote mountainous areas, and urban power grids. Equipped with an intelligent battery monitoring system and triple-layer hardware/software protection, it supports extended backup times of over 12 hours and can handle extreme power supply scenarios when paired with a generator. Its eco-friendly design achieves 90% online mode efficiency with an output power factor as high as 0.9, saving 30% in annual energy costs while complying with EU environmental standards.It offers over 10 optional accessories including NMC cards and cloud-link modules, meeting customized needs for scenarios like ATM machines and railway signal systems.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
When you need uninterrupted protection for server clusters in equipment rooms or ATMs at financial outlets, the Santak Castle C2K uninterruptible power supply, with its robust output capacity of 2000VA/1600W, becomes the ideal choice. This double-conversion online UPS features ultra-wide voltage input technology of 115-300VAC, ensuring stable operation even in humid environments along the southeastern coast or remote mountainous areas with voltage fluctuations ranging from 40Hz to 70Hz. Its input power factor of ≥0.98 reduces energy loss by 30%. With a triple-layer hardware/software protection mechanism, the device achieves 0ms switching during power outages, ensuring continuous operation of SCADA industrial control systems without data loss.The standard LCD+LED dual-display interface provides real-time monitoring of load status, while the compact 17.2kg body fits standard rack installations. It supports extended 9AH battery packs for over 12 hours of ultra-long runtime. For POS systems in chain supermarkets or automated ticketing terminals, the optional SPCC cloud-link card enables remote monitoring, combined with an ultra-high conversion efficiency of 94%, saving businesses thousands in annual electricity costs. Even more reassuring, the device complies with eight international certifications, including IEC62040, and operates at a quiet 47dB across a wide temperature range of 0-40℃, creating an ideal working environment for precision instruments such as medical imaging equipment.Product Features
- Double-conversion online design comprehensively solves 9 types of power issues
- Ultra-wide input voltage 115-300VAC, compatible with generator use
- Energy-efficient with online mode efficiency up to 90%, output power factor 0.9
- Triple hardware-software protection, adaptable to extreme environments from -40℃ to 70℃
- Smart LCD+LED display supports multi-language monitoring interface
- Modular expansion design with optional network/temperature-humidity monitoring components
- Ultra-low operational noise (47dB), compliant with EU environmental directives
Application Scenarios
- Transportation Systems: Railway signal control, automatic ticketing terminal protection
- Medical Equipment: CT machines, power backup for life support systems
- Industrial Automation: SCADA systems, power supply assurance for PLC control cabinets
- Data Centers: Power protection solutions for small server clusters
- Security Monitoring: Uninterrupted operation of video storage devices and access control systems
Product Parameters
- Model:C2K
- Capacity VA/W:2000VA/1600W*
- Input voltage range:115~300VAC
- Frequency range:40Hz-70Hz
- Input connection:National standard
- Input harmonic distortion:< 10% nonlinear full load
- Input power factor:≥0.98
- Output voltage:220VAC
- Output accuracy:±2%
- Output connection:GB 10A *4
- Phase-lock range:46-54Hz/54-66Hz
- Output frequency (battery mode):50/60Hz±0.05Hz
- Current crest factor:0.125694444
- Output harmonic distortion:<4% (linear load)
- Output harmonic distortion:<7% (nonlinear load)
- Output waveform:Pure sine wave output
- Overload capacity (Utility mode):105% ~ 150% : 47s ~ 25s 150% ~ 200% : 25s ~ 300ms >200% : 200ms 105% ~ 150% : 47s ~ 25s 150% ~ 200% : 25s ~ 300ms >200% : 200ms
- Overload capacity (Battery mode):105% ~ 150% : 47s ~ 25s 150% ~ 200% : 25s ~ 300ms >200% : 200ms 105% ~ 150% : 47s ~ 25s 150% ~ 200% : 25s ~ 300ms >200% : 200ms
- Efficiency (Utility mode):>90%
- Battery voltage:48VDC
- Battery type:9AH
- Backup time:Depends on user requirements and configuration
- Recharge time:Depends on user requirements and configuration
- Charging current:1.0A
- Transfer time Battery mode <--> Utility mode:0ms
- Display:LCD+LED digitally displays load/power/input/output parameters, text and graphical display of operation modes
- (WxHxD)mm:190x328x393
- Weight (kg):17.2
- Operating temperature:0-40℃
- Operating humidity:20-90% (non-condensing)
- Noise:<50dB @ 1 meter distance
- Compliance standard:IEC61000, IEC62040, GB7260, GB4943
- Product certification:TLC/ Energy-saving certification / Broadcasting certification
- RS232:Standard
- Smart card (optional):Optional NMC card, CMC card, AS400 card, USB card, or SPCC card (requires simultaneous purchase of smart card slot)
- Software:Winpower
