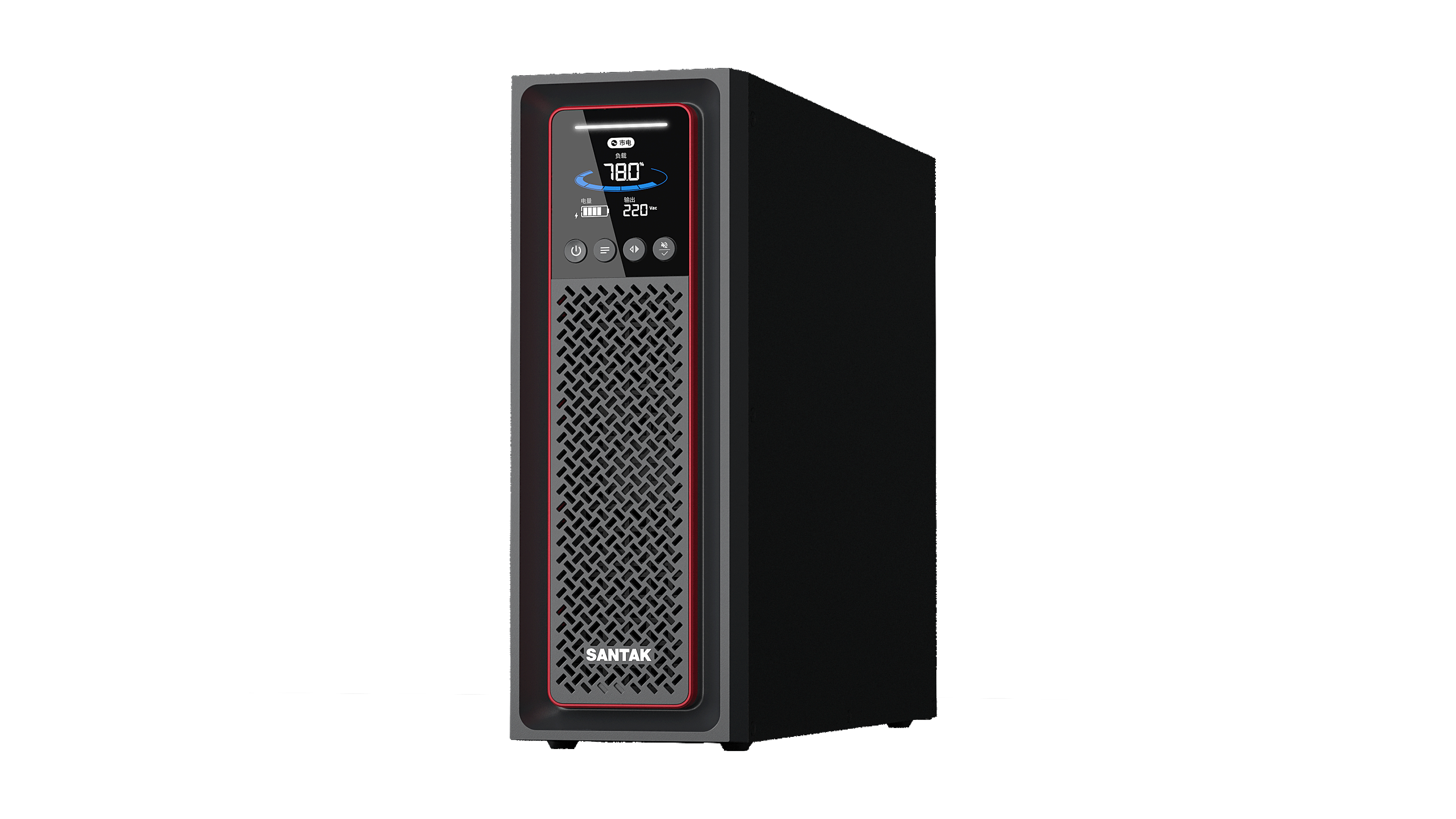

Santak UPS Power Supply 3KVA/3KW Santak C3K (G7) Standby UPS Power Supply
The Santak UPS C3K (G7) uninterruptible power supply is specifically designed for embedded industries and enterprise critical equipment, with a 3KVA/3KW high-capacity design suitable for high-load scenarios like servers and workstations. The seventh-generation Castle series, built on 40 years of technological expertise, adopts a 1.0 power factor for stronger load capacity. Its ultra-wide 110-300Vac input voltage range easily handles grid fluctuations, while 125% overload capacity for 10 minutes ensures stable operation during emergencies. CVCF constant voltage and frequency technology precisely matches precision instruments, and intelligent three-stage charging supports 8A fast charging, combined with battery self-test and temperature compensation to extend battery life.Through the Santak Plus APP for remote monitoring, multi-protocol communication card expansion, and silent mode, it meets library-level low-noise requirements, serving as a reliable power guardian for enterprise file servers, production line controls, and rail transit systems.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
The Santak Castle Series C3K (G7) uninterruptible power supply delivers 3KVA/3KW high-efficiency output, providing round-the-clock power protection for embedded devices and enterprise-level critical systems. Inheriting 40 years of R&D expertise, it features 1.0 power factor technology to significantly enhance load capacity. With an ultra-wide 110-300Vac input voltage range, it adapts to over 90% of grid fluctuation scenarios, ensuring stable operation even during voltage dips or surges. Its exceptional 125% overload endurance for 10 minutes guarantees sufficient time for server clusters, production line control systems, and other critical equipment to complete data backup and safe shutdown during sudden power outages.To meet the specific needs of precision instruments, the CVCF constant voltage and frequency mode delivers precise 220Vac±1% voltage and adaptive 50/60Hz frequency, complemented by a 40-70Hz wide-frequency input design for seamless compatibility with generator power scenarios. The built-in intelligent battery management system supports a maximum 8A fast-charging current, extending the lifespan of the standard 72V/9AH battery pack by 30% through temperature compensation algorithms and periodic self-test programs. Users can flexibly connect devices via four national-standard sockets and terminal blocks, while the standard RS232 interface and optional network monitoring card enable remote management. The Santak Plus APP further offers real-time status tracking and alarm notifications.In terms of user experience, the compact 3U chassis (190x391x297mm) saves 40% installation space, with auto-adjusting fans achieving library-level quietness under low loads. The LCD screen supports multilingual display and wake-on-touch functionality, while the optional EMP temperature-humidity module enables environmental monitoring. The product has obtained CQC energy-saving certification and TÜV Class 1 standards, making it suitable for demanding environments like rail transit communications, medical equipment, and intelligent security systems. It delivers up to 93% utility power conversion efficiency for distributed IT systems, achieving the perfect balance between high performance and low energy consumption.Product Parameters
- Model:C3K (G7)
- Rated Capacity:3KVA/3KW
- Input/output configuration:Single-phase input, single-phase output
- Input configuration:L+N+PE
- Rated voltage:(200Vac/208Vac/220Vac/230Vac/240Vac (default 220Vac)
- Voltage range:110Vac~300Vac
- Frequency:40Hz~70Hz
- Power factor:≥0.99
- Input harmonic distortion THDI:<5% @ Non-linear full load
- Bypass voltage:Bypass mode default 187Vac~264Vac, ECO mode default 198Vac~242Vac
- Battery voltage:72Vdc
- Internal battery capacity:9AH
- Backup time:>3 minutes @ PF=1 full load, >4 minutes @ PF=0.9 full load
- Charging current:1.5A
- Output mode:L +N +PE
- Rated voltage:Default 220Vac (configurable for 200Vac/208Vac/220Vac/230Vac/240Vac)①
- Output frequency:50Hz/60Hz auto-adaptive
- Output socket:4* National Standard Sockets (10A) + Terminal Block
- Efficiency @ Utility mode:up to 93%
- Power factor:1②
- Voltage accuracy:±1%
- Output harmonic distortion THDV:< 1%@linear full load
- Overload capacity @ Utility mode:≤ 105%, continuous operation with alarm 105% ~125%, transfer to bypass in 10 minutes with alarm 125% ~150%, transfer to bypass in 30 seconds with alarm >150%, transfer to bypass in 100ms with alarm
- Transfer time:0ms
- HMI Display:LCD, tricolor LED
- HMI Communication:Standard RS232, optional smart card slot and NMC card, CMC card, AS400 card, SPCC card
- Operating temperature:0°C-40°C
- Storage temperature:-25℃～ 55℃ (without battery)
- Relative humidity:0%~95% RH (non-condensing)
- Altitude:≤ 3000m (derating required when >1000m)③
- IP rating:IP20
- Certification:TAF certification, CQC energy-saving certification
- Industry standard:YD/T 1095-2018, CQC3108-2011
- EMC standard:GB/T 7260.2:2009, IEC 62040-2:2016 Low-frequency conducted, harmonics: Class A; Electrostatic discharge, conducted immunity, radiated immunity: level 3; Transient pulse interference, surge, and power frequency magnetic field immunity: level 4
- Dimensions (WxDxH mm):190x391x297
- Net weight (kg):23
- Packaging dimensions (WxDxH mm):330*493*438
- Gross weight (kg):24.9
