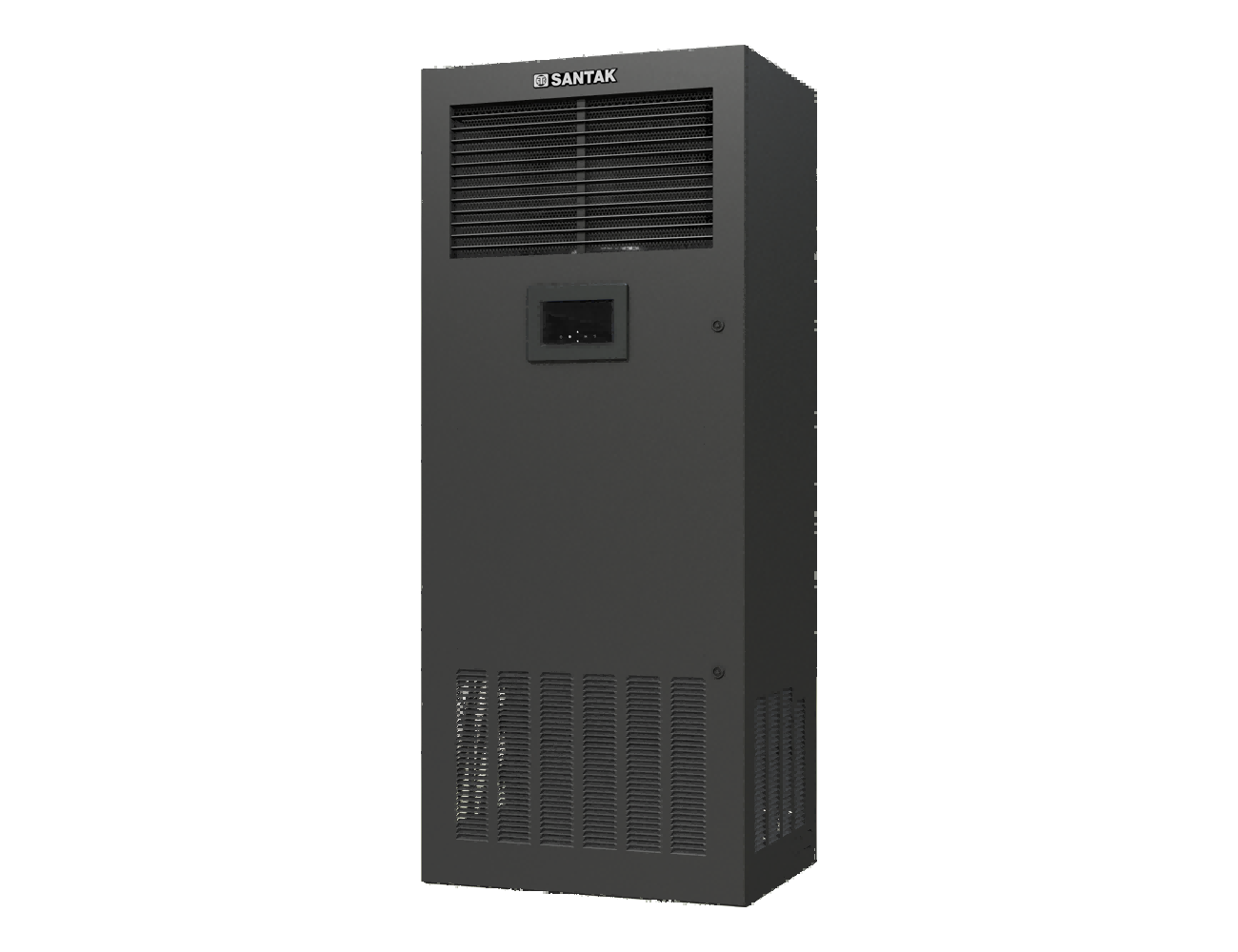

Santek fixed-frequency precision air conditioner SCC012UCE1/PE1, 12.5KW

Product details

The Santak Castle Series SCC012UCE1/PE1 precision air conditioner, with a core cooling capacity of 12.5KW, is specifically tailored for small and medium-sized computer room environments. Featuring a high-airflow, low-enthalpy-difference design and a 0.9 high sensible heat ratio cooling system, it rapidly eliminates the sensible heat load generated by equipment. The unit is equipped with a fixed-frequency compressor and electronic expansion valve, combined with the dual-effect pairing of an EC centrifugal fan and a speed-adjustable axial fan, achieving an annual energy efficiency ratio of up to 4. Certified as national first-class energy efficient, it saves over 30% more energy compared to traditional air conditioners.The 3780m³/h high-airflow design ensures uniform heat dissipation in every corner of the computer room. With standard operation capability in a wide temperature range of -15°C to 45°C and optional low-temperature components, it can adapt to extreme cold environments in northern regions, maintaining stable operation even at -35°C. The unit features a 4.3-inch LCD smart touchscreen that displays real-time temperature and humidity curves and equipment status. The built-in expert self-diagnosis system records 500 historical events, facilitating quick troubleshooting by maintenance personnel. Supporting 32-unit group control management via the RS-485 interface, along with standard leak detection and dust filters, it effectively prevents environmental safety hazards.The innovative quick-connect design enables welding-free pipeline installation, with factory-precharged refrigerant saving 90% of installation time. It supports multi-directional piping layouts (top, bottom, left, right), while the ultra-narrow 650mm chassis is particularly suitable for space-constrained cabinet rooms. The metallic black body integrates PTC ceramic heating modules and electrode humidification systems, maintaining temperature fluctuations within ±0.5°C and humidity precision of ±5% in constant temperature/humidity mode, creating an ideal environment for servers and other precision equipment.To meet diverse scenario requirements, the unit offers both cooling-only and constant temperature/humidity versions. The 380V three-phase power design meets high-power equipment demands, and the white outdoor unit features weather-resistant materials with a compact 728mm structure adaptable to various building facades. Standard 20-meter copper tube connections can be extended to 45 meters with expansion kits, ideal for distributed computer room layouts in multi-story buildings. From communication base stations to rail transit equipment rooms, from enterprise data centers to financial system UPS rooms, the Santak Castle Series ensures year-round stability for critical equipment. Backed by a 1-year full warranty and nationwide service network, it delivers reliable thermal management infrastructure for digital transformation.

Product Features

High-efficiency compressor and electronic expansion valve achieve ±0.5℃ precise temperature control
EC centrifugal fan + speed-regulating axial fan combination improves energy efficiency by 30%
Wide-temperature operation supports -35℃ to 45℃, adaptable to nationwide climate conditions
R410A eco-friendly refrigerant + CQC Class 1 energy efficiency certification, meeting both energy-saving and environmental standards
4.3-inch smart screen + 500 event logs, improving fault diagnosis efficiency by 60%
Quick-connect interfaces and pre-charged refrigerant design reduce installation time by 50%
Dust-proof filter + water leakage detection + IP42 protection rating, comprehensive safety features

Application Scenarios

Precise temperature control for small/medium data center server rooms
Thermal and humidity management for 5G communication base station equipment
Precision environmental protection for rail transit control centers
Heat load balance for UPS power rooms in financial institutions
Uninterrupted temperature control for medical equipment rooms
Environmental regulation for industrial automation control rooms
Thermal management for micro server rooms at cloud computing edge nodes

Product Parameters

Model:SCC012UCE1/PE1
System Specifications Function:Cooling Only/Constant Temperature & Humidity
System Specifications Total Cooling Capacity (KW) (Return Air 24℃, RH50%):12.5
System Specifications Airflow:3780
System Specifications Sensible Heat Ratio:0.9
System Specifications Annual Energy Efficiency Ratio:4
System Specifications Air Supply Method:Top Front Air Supply
Compressor Compressor Type:Fixed Frequency Compressor
Compressor Refrigerant:R410A
Compressor Pre-charged Refrigerant Support Pipe Length (m):5
Heating (Constant Temperature Models Only) Electric Heating Type:PTC Ceramic
Heating (Constant Temperature Models Only) Heating Capacity (kW):3
Heating (Constant Temperature Models Only) Heater Stages:1
Humidification (Constant Temperature Models Only) Humidification Type:Electrode
Humidification (Constant Temperature Models Only) Humidification Capacity (kg/hr):3
Humidification (Constant Temperature Models Only) Humidification Water Inlet Thread:G1/2 Internal Thread
Expansion Valve Expansion Valve Type:Electronic Expansion Valve
HMI Display:4.3-inch LCD Display
HMI Standard Communication Interface:RS485
Indoor Unit Parameters Power Input:380V/3 Phase/50Hz
Indoor Unit Parameters Fan Type:EC Fan
Indoor Unit Parameters Exterior Color:Black
Indoor Unit Parameters Unit Dimensions Width*Depth*Height (mm):650*450*1800
Indoor Unit Parameters Net Weight (kg):132/118
Outdoor Unit Parameters Model:CS016F
Outdoor Unit Parameters Power Input:220V/Single Phase
Outdoor Unit Parameters Fan Type:AC Axial Fan
Outdoor Unit Parameters Outdoor Unit Color:White
Outdoor Unit Parameters Unit Dimensions Width*Depth*Height (mm):728*405*1370
Outdoor Unit Parameters Net Weight (kg):53
Other Function Settings Group Control:Supported
Other Function Settings Leak Detection:Standard
Other Function Settings Extension Kit:Optional
Other Function Settings Low Temperature Kit:Optional
Installation Requirements Indoor/Outdoor Unit Pipe Length (Standard/With Extension Kit) (m):20/45
Installation Requirements Height Difference (+/-) (m):10/-5
Certification:CCC, CQC, CRAA
Warranty:One Year
