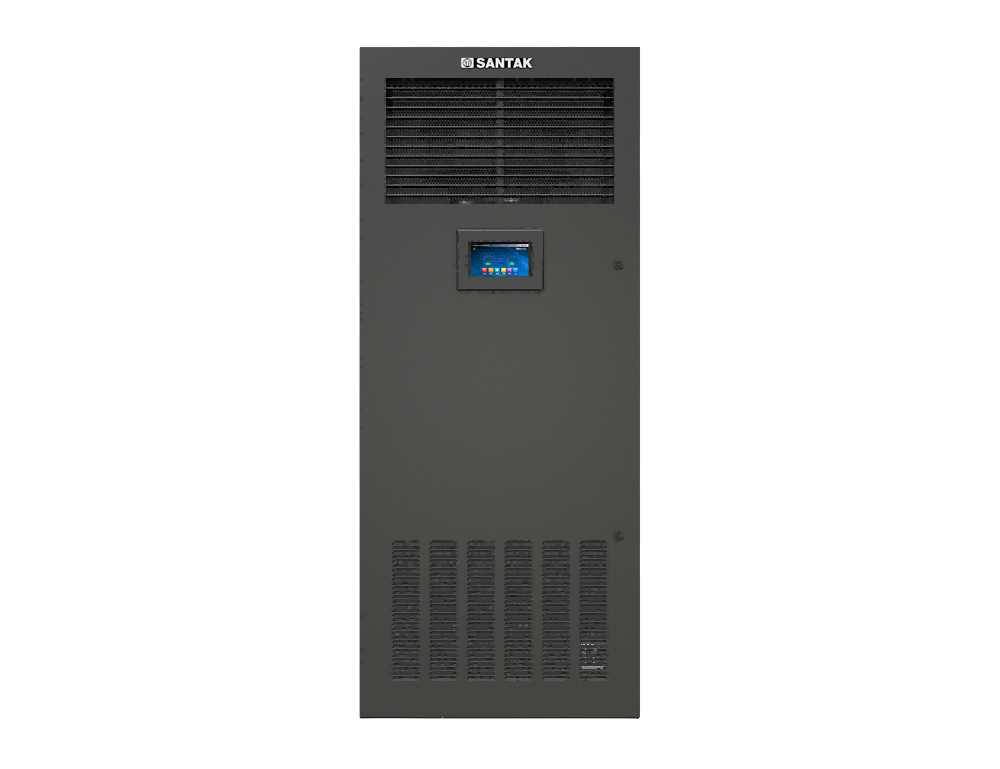

Santak Full Inverter Precision Air Conditioner SCC012UCE2/PE2 12.5KW for Server Rooms
The Santak Castle series SCC012UCE2/PE2 full-inverter precision air conditioner is specifically designed for small to medium-sized equipment rooms, delivering 12.5kW powerful cooling capacity with precise temperature and humidity control. It utilizes DC inverter compressors and EC centrifugal fans for high energy efficiency, achieving AEER efficiency at China's Tier-1 standard, and has obtained CCC, CQC, and CRAA triple certifications.Innovative wet-film humidification technology operates with zero power consumption, while electronic expansion valves and intelligent temperature control systems ensure ±0.5℃ precision. The 7-inch touchscreen supports 32-unit group management, adapting to extreme environments from -35℃ to 45℃. Backed by a three-year manufacturer warranty, it provides year-round reliable protection for data centers, communication base stations, and rail transit equipment rooms.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
The Santak Castle series SCC012UCE2/PE2 full-inverter precision air conditioner redefines data center environmental management standards through technological innovation. Designed for 12-30 sqm small to medium-sized spaces, this 12.5kW cooling unit employs dual-core DC inverter compressors and EC centrifugal fans, achieving an AEER efficiency ratio of up to 4.0 at full load, which is over 40% more energy-efficient than traditional units. Precise refrigerant flow regulation via electronic expansion valves, combined with intelligent PID algorithms, ensures temperature fluctuations within ±0.5℃, maintaining an ideal environment of 24℃±1℃ and 50%±5% humidity for sensitive equipment like servers.The unit's innovative wet-film humidification system achieves zero power consumption, working in tandem with eco-friendly R410A refrigerant and PTC ceramic heating modules to ensure stable operation even in extreme conditions ranging from -35℃ to 45℃. Its 3600m³/h high airflow design features top-front air supply with a professional-grade sensible heat ratio of 0.9, specifically optimized for high heat density scenarios in data centers. The 7-inch smart touchscreen includes a self-diagnostic system and supports remote monitoring via RS485 interface, while its 32-unit group control function enables automatic standby unit rotation to ensure 365-day uninterrupted operation for critical business systems.From communication base stations to rail transit control centers, this precision air conditioner with triple CCC/CQC/CRAA certifications breaks spatial constraints with its ultra-narrow 650mm body and full-front maintenance design. Pre-charged refrigerant quick-connect interfaces reduce installation time by 30%. Backed by a three-year manufacturer warranty and an automatic oil separation protection system, it builds a reliable environmental barrier for IT equipment, truly realizing the intelligent and energy-saving transformation of computer room air conditioning.Product Features
- Full DC inverter system enables 20%-100% stepless output adjustment
- Dual energy-saving technology with EC centrifugal fan + electronic expansion valve
- Wet membrane humidification system achieves zero-power humidity control
- -35℃ low-temperature components adapt to extreme climate conditions
- 7-inch smart touchscreen supports centralized control of 32 devices
- Full front-access maintenance design improves 90% operational efficiency
- Triple safety certification ensures 24/7 reliable operation
Application Scenarios
- Precision air conditioning system for rail transit control centers
- Environmental control for server rooms in the financial industry
- Constant temperature and humidity environment for medical equipment rooms
- Thermal management for industrial automation control centers
- Cooling solution for cloud computing node server rooms
Product Parameters
- Model:SCC012UCE2/PE2
- Condensate Drain Pipe Diameter Function:Cooling Only/Constant Temperature & Humidity
- Condensate Drain Pipe Diameter Total Cooling Capacity (kW) (Return Air 24°C, RH50%):12.5
- Condensate Drain Pipe Diameter Sensible Cooling Capacity (kW) (Return Air 24°C, RH50%):11.25
- Condensate Drain Pipe Diameter Sensible Heat Ratio:0.9
- Condensate Drain Pipe Diameter Annual Energy Efficiency Ratio (AEER):4
- Condensate Drain Pipe Diameter Air Supply Method:Top Front Air Supply
- Compressor Compressor Type:DC Inverter Compressor
- Compressor Output Range:20%-100%
- Compressor Refrigerant:R410A
- Heating Electric Heater Type:PTC Ceramic
- Heating Heating Capacity (kW):3
- Heating Heater Stages:1
- Humidification Humidifier Type:Wet Film
- Humidification Humidification Capacity (kg/hr):1.5
- Humidification Humidification Water Inlet Thread Connection:G1/2 Internal Thread
- Expansion Valve Expansion Valve Type:Electronic Expansion Valve
- Others Filter Grade:G2
- Others Group Control Function:Supported
- Others Leak Detection:Standard
- Others Extension Component:Optional
- Others Low-Temperature Component:Optional
- HMI Display Screen:7-inch LCD Touch Screen
- HMI Standard Communication Interface:RS485
- Indoor Unit Parameters Power Input:380/3N/50Hz
- Indoor Unit Parameters Fan Type:EC Fan
- Indoor Unit Parameters Air Flow Rate (m3/h):3600
- Indoor Unit Parameters Exterior Color:Black
- Indoor Unit Parameters Unit Dimensions Width*Depth*Height (mm):650×450×1800
- Indoor Unit Parameters Net Weight (kg):132/138
- Outdoor Unit Parameters Model:CS016E
- Outdoor Unit Parameters Power Input:220V/1P
- Outdoor Unit Parameters Fan Type:AC Axial Fan
- Outdoor Unit Parameters Outdoor Unit Color:White
- Outdoor Unit Parameters Unit Dimensions W*D*H (mm):728*405*1370
- Outdoor Unit Parameters Net Weight (kg):53
- Certification:CCC, CQC, CRAA
- Warranty:Three Years
