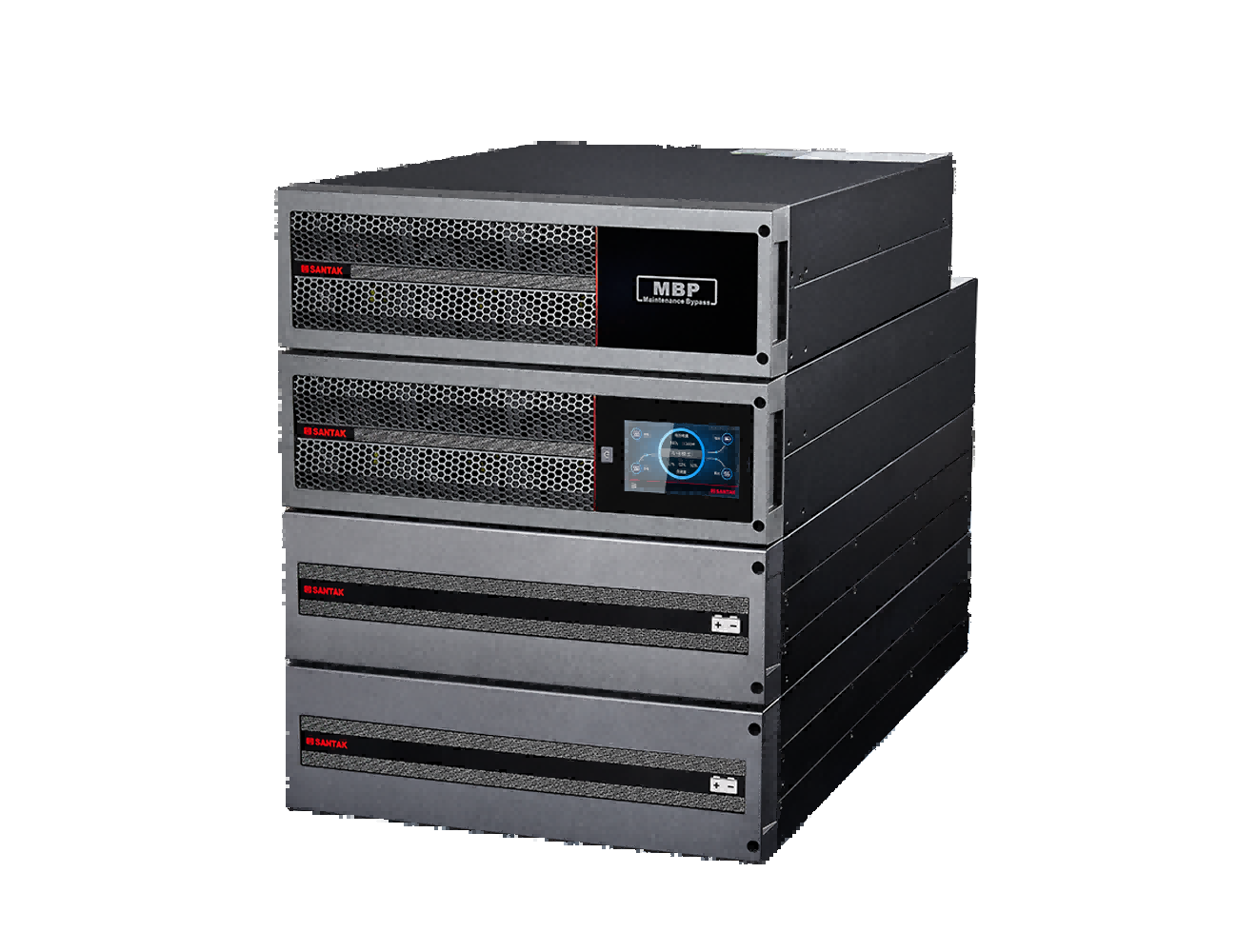

Santak UPS Power Supply 6kVA Santak PT6K Online Rack-mounted UPS Power Supply
The Santak UPS PT6K uninterruptible power supply is specifically designed for critical equipment in server rooms, hospitals, schools, and enterprises. Utilizing online double-conversion technology, it achieves zero-delay power switching to ensure stable operation of servers, monitoring systems, and precision instruments. With a 6kVA rated capacity and 1.0 output power factor, it can support 2700W of critical load, featuring single-phase three-wire input/output and a wide voltage input range of 100-275VAC to handle grid fluctuations effortlessly.Equipped with an intelligent load prioritization management system to ensure power supply for core equipment, it comes standard with an LCD screen displaying real-time voltage, load, and battery status. Its 95% high conversion efficiency and compact 2U rack-mount design significantly save server room space. Paired with expandable battery packs for flexible capacity upgrades, the IPM intelligent management software is deeply compatible with virtualization platforms, providing comprehensive protection for IT equipment from the physical layer to the application layer.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
The Santak PT6K Lingxiao Series UPS is a robust safeguard against power interruptions for critical equipment. This professional-grade device, based on online double-conversion architecture, achieves seamless switching between mains and battery power in 0 milliseconds, delivering pure sine wave power to sensitive loads such as server clusters, medical devices, and laboratory instruments. Its core advantage lies in combining a 192V adjustable battery system with 95% ultra-high conversion efficiency, along with ±1% voltage accuracy and ≤1% harmonic distortion, ensuring continuous operation of precision equipment like CT scanners and gene sequencers during voltage instability or power outages.The 2U-height rack-mounted design (438*86.3*573mm) is particularly suitable for space-constrained server rooms, with a chassis depth of less than 600mm for easy deployment in standard cabinets. Facing complex application scenarios, the PT6K demonstrates strong environmental adaptability: its circuit board dustproof and anti-corrosion technology ensures stable operation in dusty workshops, while 50°C high-temperature environment testing verifies its reliability in extreme locations such as steel mills and subway stations. The unique load prioritization management function enables differentiated power supply strategies for core servers and general equipment in data centers, prioritizing critical loads like storage arrays when battery capacity is insufficient.Standard RS232/USB/dry contact interfaces, combined with a Gigabit network monitoring card, enable remote power on/off and status monitoring. Maintenance personnel can safely shut down and migrate virtualized servers via IPM software. In terms of energy efficiency, the device reduces grid pollution through active power factor correction technology (PF>0.99), achieving up to 98% efficiency in eco-mode, saving enterprises tens of thousands in annual electricity costs. For medical scenarios, its emergency shutdown interface integrates with hospital fire systems to ensure safe power-off for MRI equipment during emergencies. In rail transit applications, the wide-frequency input (40-70Hz) feature filters harmonic interference from electric locomotives, ensuring 24/7 stable operation of subway signaling systems.The PT6K, triple-certified by TLC/CE/CQC, has become the preferred power guardian for over 200 industry scenarios including financial data centers, ICU wards in top-tier hospitals, and university research laboratories.Product Features
- Online double-conversion architecture outputs pure sine wave for stable power quality
- 2U compact rack-mounted design with depth <600mm saves space
- Output load tiered management prioritizes core equipment operation
- Active power factor correction technology (PF>0.99) reduces grid pollution
- Dust/corrosion-resistant design + 50°C high-temperature operation for harsh environments
- Smart management software supports virtualization platforms for remote O&M
- Optional expandable battery packs and parallel modules flexibly adapt to multi-scenario needs
Application Scenarios
- Power protection for core servers in financial industry data centers and bank branches
- Uninterrupted power supply for hospital ICU equipment, testing instruments, and medical imaging systems
- Power security for precision instruments and automated control systems in manufacturing production lines
- Backup support for rail transit signaling systems and subway station emergency power equipment
- Voltage stabilization protection for servers in small and medium-sized enterprise server rooms and edge computing nodes
- Power management for precision equipment in educational institution laboratories and data centers
- Emergency power solutions for critical network equipment in telecom base stations and data centers
Product Parameters
- Product Model:PT6K
- Rated capacity:6kVA
- Output power factor:1
- Output rated voltage:220V/230V/240V
- Output voltage accuracy:± 1 %
- Rated output frequency:(50/60±0.1) Hz
- Output configuration:Single-phase three-wire
- Output voltage total harmonic distortion THDV (linear load):≤1%
- Crest factor ratio:≥3
- Online double conversion mode efficiency:0.95
- Eco mode efficiency:0.98
- Overload capacity:125%, 10 minutes
- Input voltage range:100VAC-275VAC
- Input system:Single-phase three-wire
- Input frequency range:40~70Hz
- Input power factor (PF):>0.99
- Input current total harmonic distortion (THDi):<3% (single-phase)
- Battery voltage:192VDC (192V~240V adjustable)
- Maximum charging current:0~4A adjustable (default 1.4A)
- Battery charging temperature compensation:Supported
- Backup time (time/load):11min/2700W
- Recharge time:3 hours recharge to 90%
- Display:LCD
- Communication interface:Standard USB/RS232/RPO/ROO, smart slot, dry contact
- Dimensions and weight:Dimensions and Weight
- Width x Height x Depth (mm):438*86.3*573
- Rack mounting height:2U
- Net weight (Kg):14
- Installation type:Rack or tower mounting
- Operating ambient temperature:0°C ~ 50°C
- Operating ambient humidity:0 ~ 95% (non-condensing)
- Operating altitude:0~3000m, derating required above 1000m
- Noise:≤50dB
- Protection level:IP20
- Standard:Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2, C1 Performance: IEC/EN 62040-3
- Certification:TLC/CE/CQC Energy Saving
