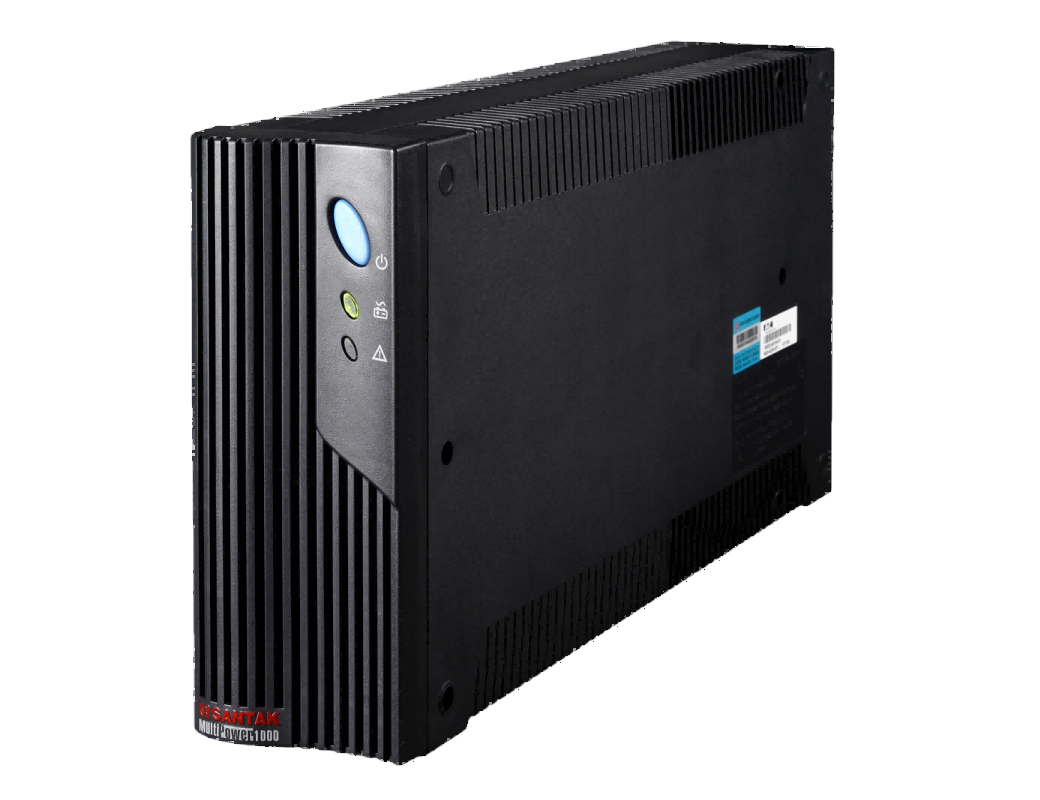

Santak MT500 Standby UPS Power Supply 500VA, 100VA

Product details

In today's increasingly complex power environments, the Santak MT500 uninterruptible power supply, with its intelligent CPU control technology, builds a multi-layered protection network for home computers, office equipment, and network systems. This UPS not only offers dual power options of 500VA/100VA but also demonstrates strong adaptability with an ultra-wide input voltage range of 148-295VAC, maintaining stable output even in areas with frequent voltage fluctuations through its super mode. The unique vertical/horizontal dual-purpose design, combined with optional rack-mount installation kits, allows it to seamlessly integrate into various scenarios such as study desks and server room racks.The carefully divided voltage-stabilized output sockets and surge protection interfaces on the back of the device can provide graded protection for computer hosts, printers, routers, and other equipment simultaneously. When the mains power is interrupted, the built-in sealed lead-acid battery can maintain critical equipment for more than 10 minutes (half-load state), while the delayed version can achieve several hours of continuous power supply through an extended battery box, making it particularly suitable for scenarios such as medical equipment and monitoring systems that cannot be interrupted. The MT series' unique smart slot design allows users to optionally configure USB cards or Webpower cards, enabling advanced functions such as remote monitoring via mobile phones and automatic shutdown, breaking the physical space limitations of power management.In terms of technical parameters, the MT500 adopts sine wave output technology (220V±10%) and can be fully recharged in just 16 hours. The RJ45/RJ11 network protection interface can absorb surges of up to 6kV, and EMC certification ensures zero interference during device operation. Whether it's a computer setup in a home study or NAS storage equipment in a small office, this compact UPS weighing less than 5kg can serve as the last line of defense for data security during sudden power outages.

Product Features

Smart CPU control technology enables precise power management
Vertical/horizontal/rack-mount triple installation modes
Smart card slot supports USB/Webpower remote monitoring
Ultra-wide 148-295VAC input voltage adapts to harsh environments
Dual-outlet configuration with independent voltage regulation and surge protection
Standard/delayed/long-runtime three modes for flexible selection
Sealed lead-acid battery pack supports fast charging recovery

Application Scenarios

Home study room computer and peripherals power surge protection
Continuous power supply for SME servers and network equipment
Voltage stabilization protection for equipment in areas with unstable power
Safe operation of multimedia classroom equipment in educational institutions
Stable support for industrial control equipment in voltage fluctuation environments
Scenarios requiring real-time power monitoring for remote IT systems
Hybrid power solution for use with generators

Product Parameters

Model:MT500
Rated Capacity:500VA, 100VA
Socket (National Standard):3①, 1②
Voltage Stabilization Input Range:148 ~ 295VAC (Super Mode) 173 ~ 273VAC (Standard Mode)
Battery Mode Output Voltage:220 ±10%VAC (50±1Hz)
Sealed Lead-Acid Battery, Quantity:1
Sealed Lead-Acid Battery, Backup Time (Half Load):≥10 minutes
Sealed Lead-Acid Battery, Charging Time:≤16 hours (Input 220VAC)
External Dimensions W×D×H Weight (Net):198×317×79mm 100VA 1 5.0kg
